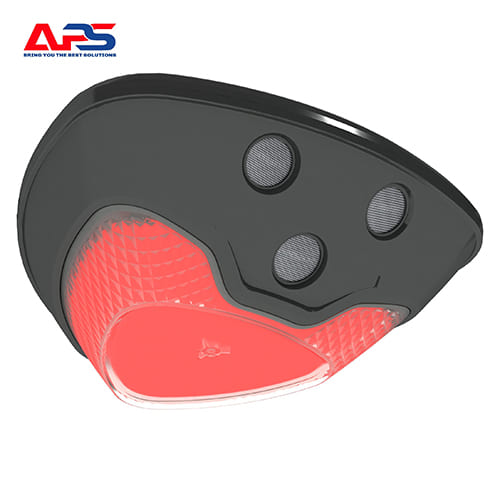

Cảm Biến Siêu Âm T04-8 – Keytop
Cảm biến siêu âm 2 in 1
Model: T04-8
| Working Voltage: DC24V | Size: 120*120*70mm |
| Working Current: green lamp 12mA,red lamp 16mA | Communication Way: RS485 |
| Working Temperature: -20~+60℃ | Communication Distance: ≤1000m |
| Power: 0.5W | Baud Setting: 4800bps,N,8,1 |
| Working Humidity:10%~90% | Max. Distance Error:0.1m |
| Casing Material: ABS | Installation Height: 2.0~2.7m |
Cảm Biến Siêu Âm T04
Model: T04
| Working Voltage: DC 24V | Size: diameter 100*32mm |
| Working Current: 10mA | Communication Way: RS485 |
| Working Temperature:- 20~+60℃ | Communication Distance: ≤1000m |
| Detection Range: 0.1~3.5m | Baud Setting: 4800bps,N,8,1 |
| Detection Area(3.5m): 0.4㎡ | Max. Distance Error: 0.1m |
| Casing Material: ABS | Installation Height: 2.0~3.5m |
| Working Humidity: 10%~90% |

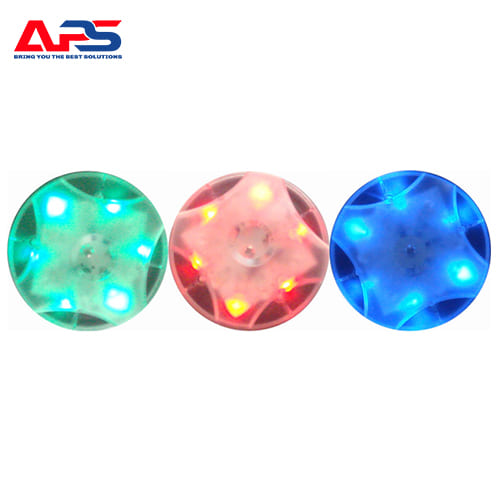

Đèn hiển thị
Model: KT-08-1
| Working Voltage: DC5V | Casing Material: ABS |
| Working Current: ＜30mA | Working Temperature: -20~+60℃ |
| Lamp Bead: 6 red/green or 6 red/blue or RGB | Visible Angle: 360° downwards |
| Led Luminance: 9000mcd(green), 5000mcd(red) | Visible Distance: >50m |
Hình ảnh thiết bị:
