Parking Guidance System
1. About the Parking Guidance System:

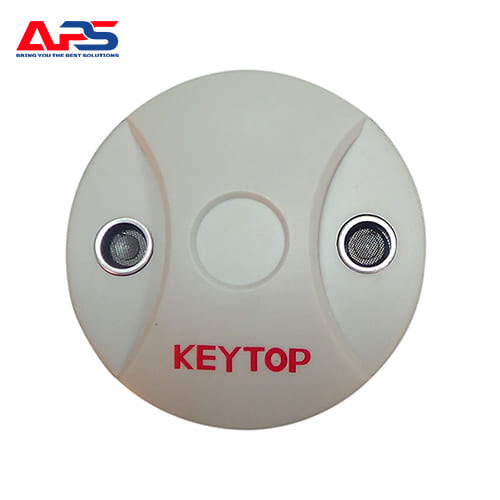

* The ultrasonic detector will be installed at each parking space to detect a parked car, the LED indicator that built in the Ultrasonic detector can turn to red color when the parking space is occupied, and turn to green color when parking space is free, the Zone controller connected to the ultrasonic detector will collect the information , and accordingly to certain rules, the data will be compressed , encoded and then sent back to Central controller, The Central controller with built in management software, use the data from ultrasonic sensor to calculate the total number of parking space and then display the available parking number on LED display ,so that can guide drivers to find an available parking space at the soonest.
* The Parking Guidance system is usually used for Commercial centers, Airports, Apartment buildings,..
>>> Readmore for Parking Guidance System
3. What’re the benefits of an Ultrasonic Parking Guidance System?
* For Travellers: Saved time looking for parking space, and reduced frustration.
* Fore Venue Operators: Increase customer satisfaction，loyalty and in patronage .
* For Parking Operators: Increased parking space occupancy, and increased carpark income .
* For Environmental: Protect the air by reduced gasoline consumption , less congestion, reduced illegal parking.
4. Ultrasonic parking guidance system:
* Based on ultrasonic sensor
* A cost-effective solution for car park operators with a limited budget.
* Easily and quickly find the parking slots with an informed LED display,
* Reduce congestion inside the carpark
* Less time searching and more time relaxing

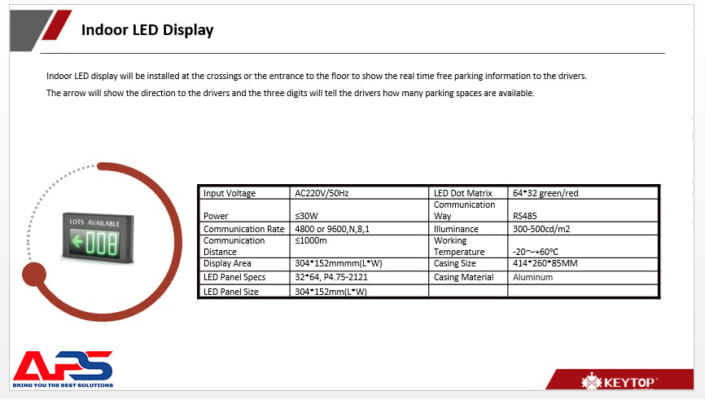

5. Directional LED Signs
* Key components of the parking guidance system,
* With arrow and digit ,Showing the nearest route to the available parking bay
* Help the operator to better diverge the traffic inside the car park
6. Outdoor Parking Guidance System
* Two types of wireless outdoor parking guidance magnetic-based and ultrasonic-based.
* Ideal for different outdoor parking lot environments.
* Based on wireless data transmission and low power consumption technologies

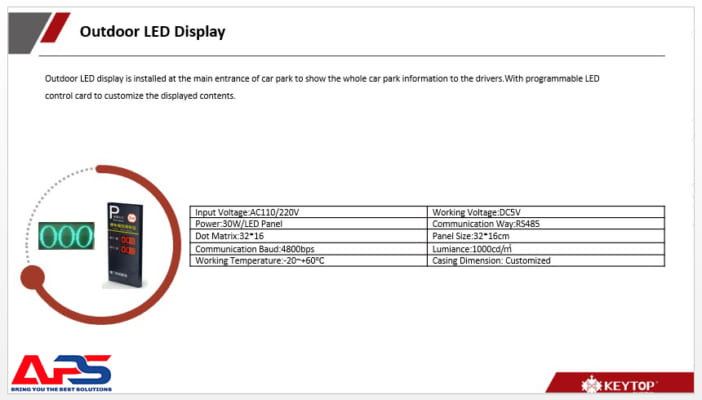

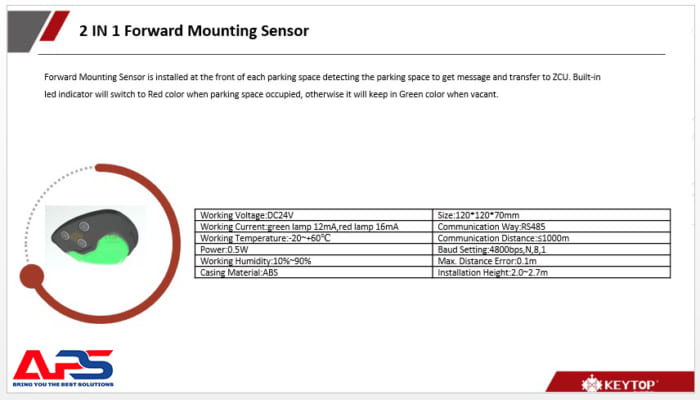

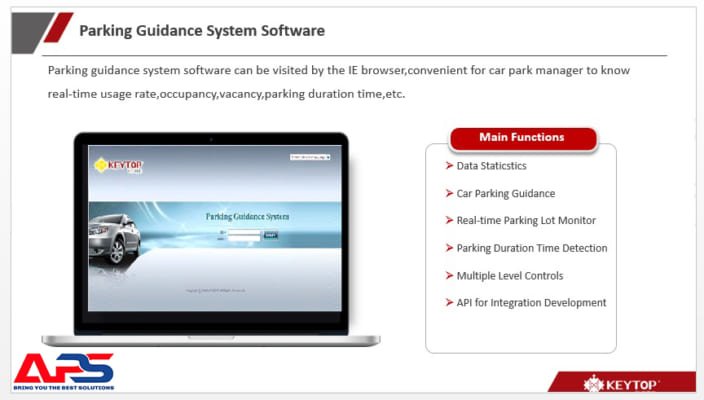

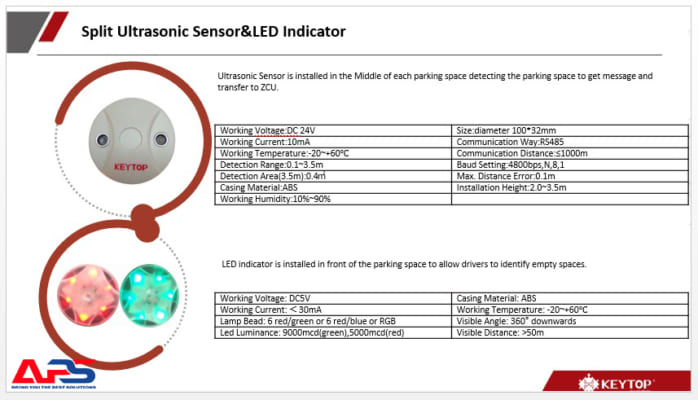

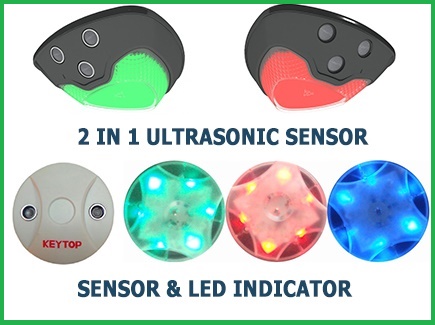

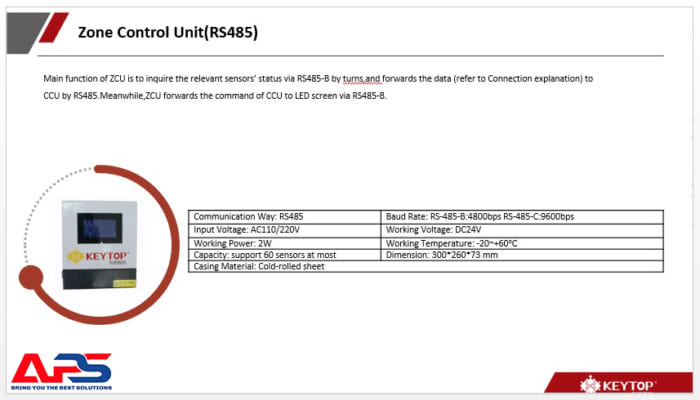

7. Main Equipment:
8. The diagram of the PGS system with RS485 communication:
9. The diagram of the PGS system with TCP/IP communication::
10. Pictures of typical projects:
APS is a company specializing in installing professional of Parking Guidance System. Contact: 0909 47 6264 for detailed advice.
Customers need to consult, quote, or cooperate with agents, please contact me. Hotline: 0909 47 6264 for detailed advice. Pleased to serve you.
